Solar DC Induction Cooktop technology combines solar power and direct current (DC) induction heating to cook food efficiently. Traditional induction cooktops use alternating current (AC), but a solar DC induction cooktop operates directly on DC power generated by solar panels, bypassing the need for an inverter to convert DC to AC. This technology reduces energy losses associated with conversion, making it more efficient and cost-effective for use in areas with abundant sunlight or limited access to conventional electricity.

Key Components:

• Solar Panels: Capture sunlight and convert it directly into DC electricity.

• Battery Storage (Optional): Stores DC electricity generated by solar panels for use when sunlight is not available.

• Induction Coil: Generates a magnetic field that heats the cooking vessel.

• Control Unit: Regulates power flow, adjusts heating levels, and ensures safe operation.

How the Technology Was Discovered

The concept of induction heating itself dates back to the early 20th century, with Michael Faraday’s discovery of electromagnetic induction in 1831 laying the groundwork. The specific application of induction heating for cooking emerged in the 1970s as a safer, faster, and more energy-efficient alternative to conventional stovetops. Its was worked with AC current

The integration of solar power with DC induction cooktops is a more recent development, driven by the need for sustainable energy solutions. This innovation emerged as researchers and engineers sought ways to utilize solar power more directly and efficiently, especially in off-grid and rural areas where energy access is limited. The development of this technology was spurred by advancements in solar photovoltaic (PV) technology, improved battery storage systems, and the increasing need for renewable energy solutions.

To establish a solar DC cooktop system with a backup for 6 hours of cooking, requiring 48V and 1200W, it is essential to assess the energy needs, battery specifications, solar panel dimensions, and additional components such as the charge controller and wiring. Below is a comprehensive guide:

1. Assess Energy Requirements
Power Requirement (P): 1200W

Usage Duration (T): 6 hours

Total Energy Needed (E):

• E = P × T = 1200W × 6h = 7200Wh

2. Determine Battery Capacity

System Voltage (V): 48V

• Battery Capacity (Ah):
• Battery Capacity (Ah) = Total Energy (Wh) / System Voltage (V) = 7200Wh / 48V = 150Ah

Recommended Battery Type: Deep-cycle lithium-ion or lead-acid batteries suitable for solar applications.

Depth of Discharge (DoD): For lithium-ion, assume 80% DoD; for lead-acid, assume 50% DoD.

Lithium-ion Battery Capacity:

• 150Ah × 0.8 = 187.5Ah (Round up to 200Ah)

Lead-acid Battery Capacity:

• 150Ah × 0.5 = 300Ah

Battery Recommendation: Use either a 48V, 200Ah lithium-ion battery or a 48V, 300Ah lead-acid battery.

3. Calculate Solar Panel Size
Daily Energy Requirement: 7200Wh

• Sunlight Hours (H): Assume 5 hours of peak sunlight (adjust according to location).

Solar Panel Power (W):

• Solar Panel Power (W) = Daily Energy Requirement (Wh) / Sunlight Hours (H) = 7200Wh / 5h = 1440W

Solar Panel Recommendation: Use a total of 1440W in solar panels, for instance:

4 x 360W panels, or 6 x 240W panels.

• 4. Charge Controller Sizing

Total Solar Panel Power: 1440W

• System Voltage: 48V
• Charge Controller Current (A):

Charge Controller Current (A) = Solar Panel Power (W) / System Voltage (V) = 1440W / 48V = 30A

Safety Margin: Incorporate a safety margin of 20-25%.

• 30A × 1.2 = 36A

Charge Controller Recommendation: Opt for a 48V, 40A MPPT charge controller, as MPPT is more efficient than PWM for larger systems.

5. Cable Sizing
Current (I):
I = Power (W) / Voltage (V) = 1200W / 48V = 25A

Cable Length: Assume a cable run of 10 feet.

• Voltage Drop: Aim for less than 3% voltage drop.
• Cable Size: Utilize a cable size calculator or consult NEC tables. For 25A at 48V, 6 AWG copper cables are recommended for short distances.

6. Inverter (Optional)
If AC power is required for other devices, include a 48V to 120V/230V inverter. However, an inverter is not necessary for this DC cooktop.

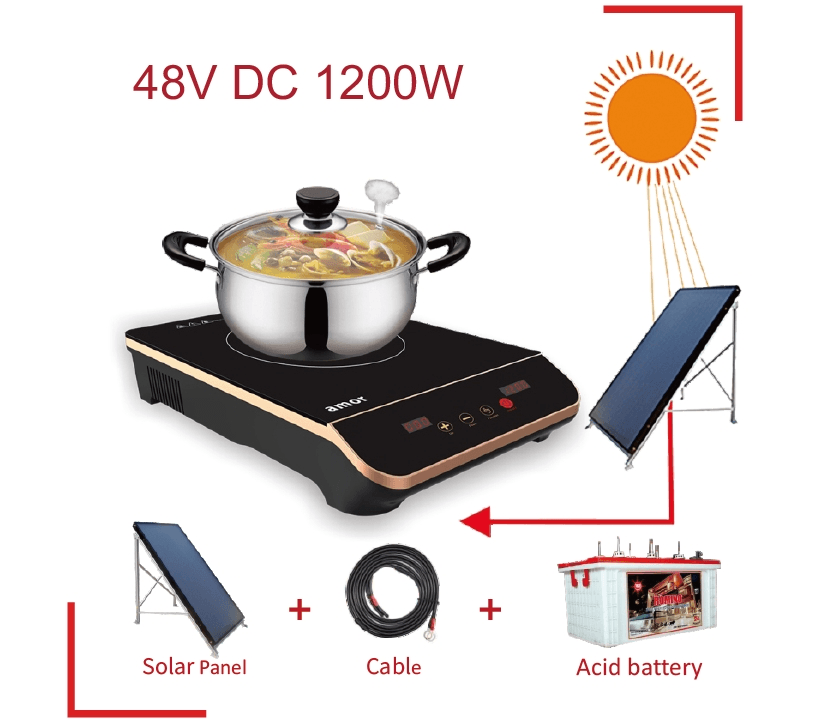

7. Summary of Components
Battery: 48V, 200Ah lithium-ion or 48V, 300Ah lead-acid.

Solar Panels: 1440W total (e.g., 4 x 360W or 6 x 240W).

• Charge Controller: 48V, 40A MPPT.

Cables: 6 AWG copper cables for DC connections.

Cooktop: 48V, 1200W DC cooktop.

8. Additional Considerations
Mounting Structure: Ensure proper mounting for solar panels.

• Fuses and Breakers: Include appropriate fuses/breakers for safety.
• Monitoring System: Implement a battery monitor to evaluate performance.

• This system is designed to provide reliable backup for 6 hours of cooking with a 1200W DC cooktop. Adjust the solar panel and battery specifications according to local sunlight conditions and usage patterns.

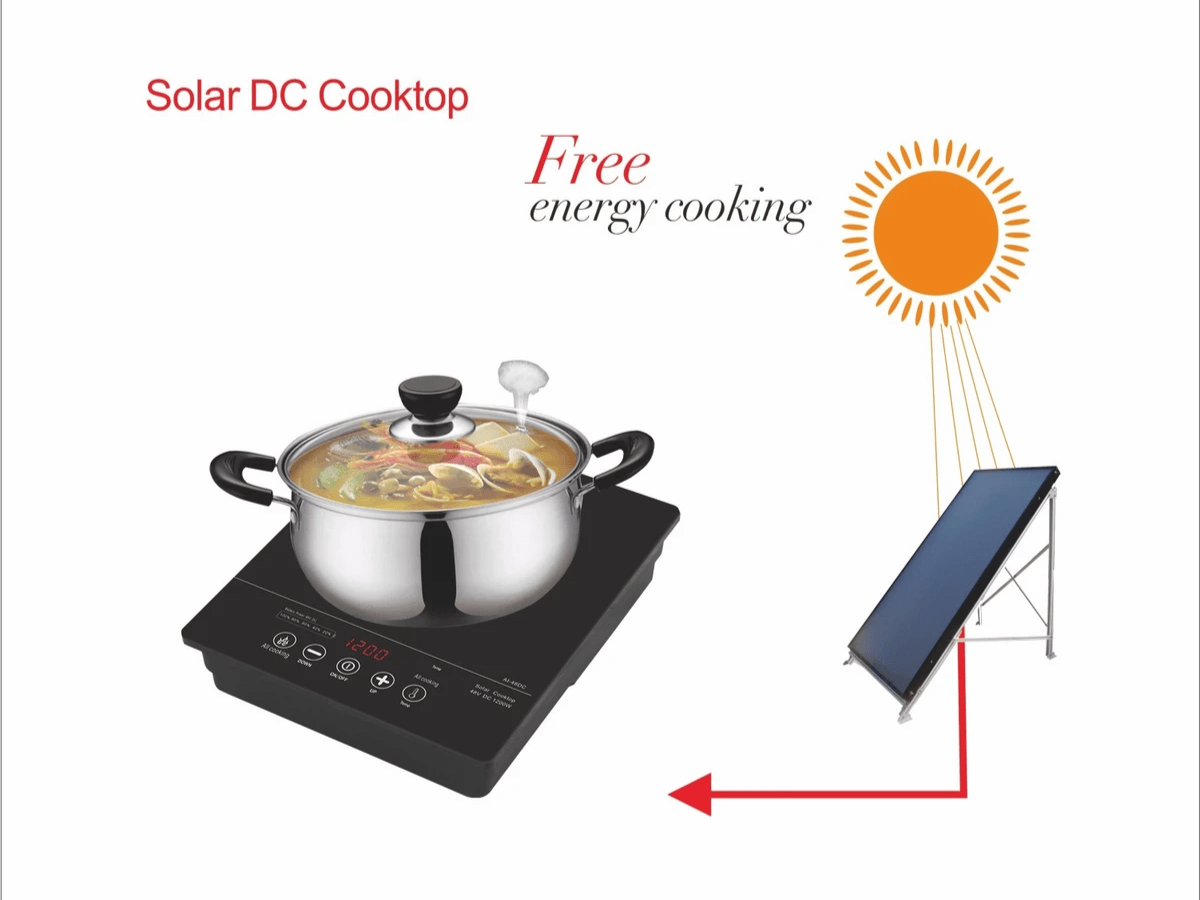

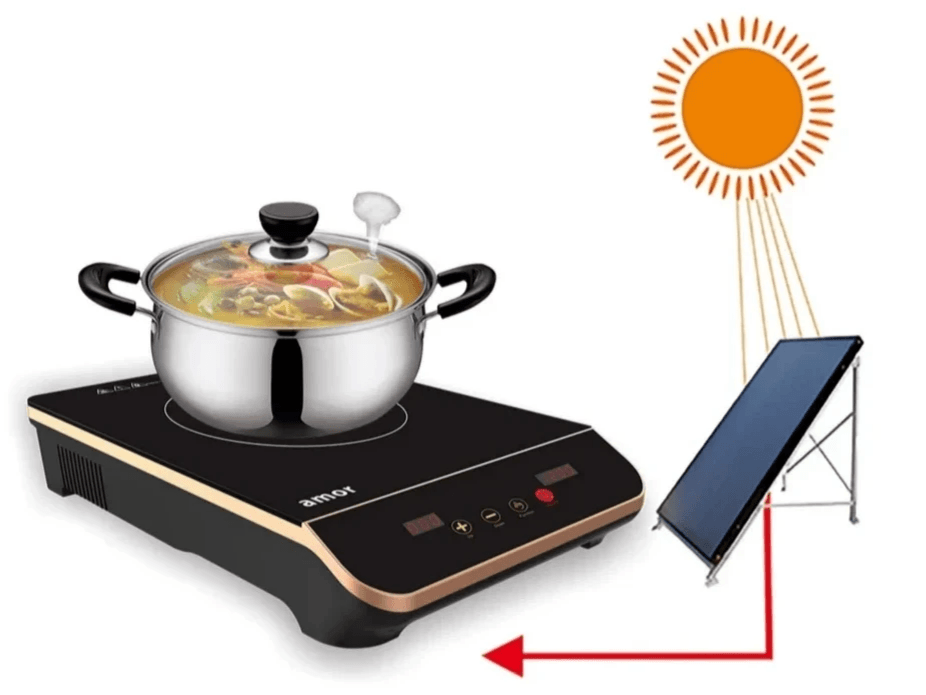

The Solar DC Induction Cooktop is an innovative and energy-efficient cooking solution designed to harness the power of solar energy. Unlike conventional electric or gas cooktops, this device operates on direct current (DC) generated by solar panels, making it ideal for off-grid or eco-conscious households.

Key Features:

1. Solar-Powered Efficiency: The cooktop directly utilizes electricity generated from solar panels, converting solar energy into usable heat for cooking, eliminating the need for AC conversion and reducing energy loss.

2. Energy Savings: By using DC power from solar panels, the cooktop significantly reduces electricity consumption and dependence on traditional energy sources, cutting down on utility costs.

3. Environmentally Friendly: The solar-powered nature of the device helps reduce greenhouse gas emissions, promoting sustainable and green living.

4. Induction Technology: Equipped with induction heating technology, the cooktop offers faster cooking times, better temperature control, and enhanced safety due to the absence of open flames.

5. Off-Grid Application: This cooktop is ideal for remote areas without access to a reliable electricity grid or where power outages are frequent, providing a reliable and consistent cooking solution.

Benefits:

• Cost-effective: Lower operating costs due to reliance on free solar energy.

• Eco-friendly: Reduces carbon footprint by utilizing renewable energy.

• Portable and adaptable: Ideal for rural, off-grid, or eco-conscious households.

• Safety: Induction technology offers a safer cooking experience compared to gas stoves, with no fire hazards.

Conclusion:

The Solar DC Induction Cooktop represents a leap forward in sustainable home appliances, combining the latest in solar energy and induction cooking technology. It offers a cost-effective, efficient, and environmentally friendly alternative for cooking, especially in regions where conventional energy sources are limited.
